The features on this page are available only when the DV Engine is active for your account. Accounts on the QF driver do not have access to these features.

EXPLAIN

Returns the execution plan for a SQL statement. EXPLAIN supports SELECT, DELETE, and other DML statements. The result set contains a single column, plan, of type string.

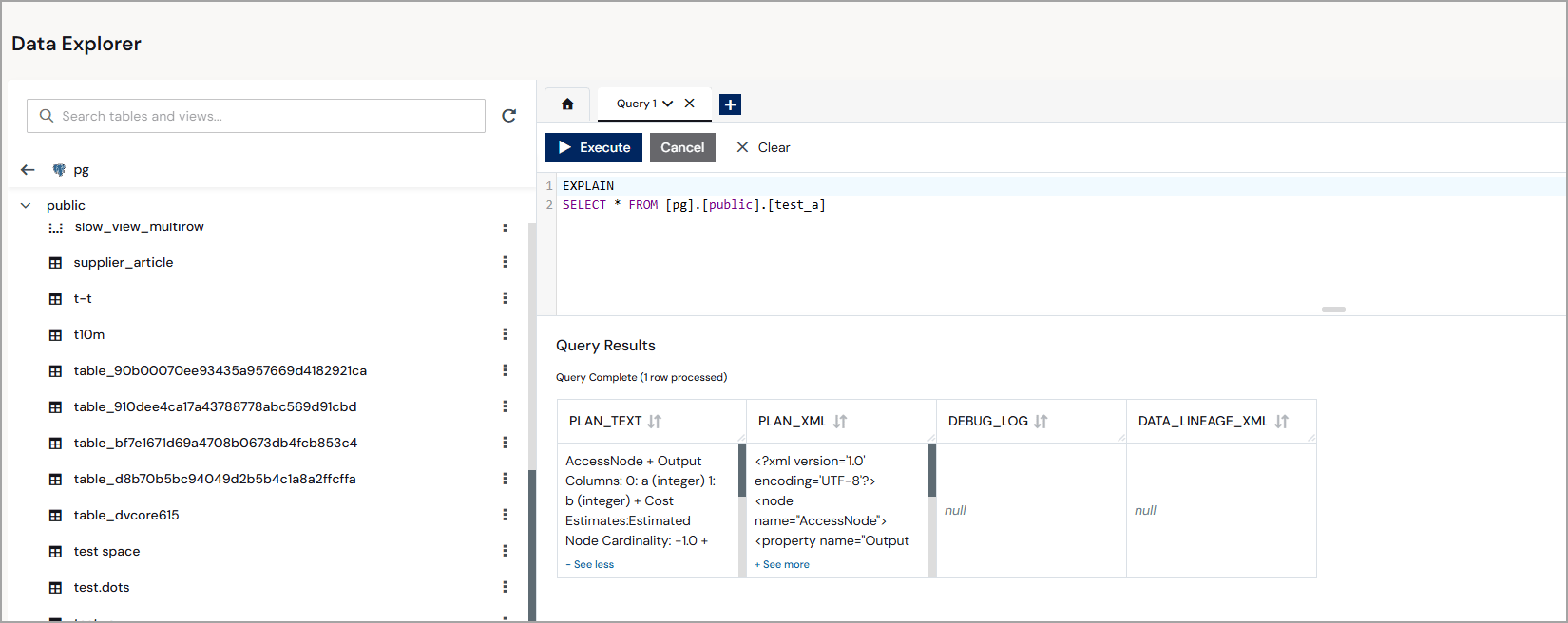

EXPLAIN example
Syntax
Examples

SQL Syntax

CROSS APPLY / OUTER APPLY

A lateral join that applies a table-valued function or subquery to each row of the left table.
  • CROSS APPLY Excludes left-side rows where the applied expression returns no rows (equivalent to an inner join).
  • OUTER APPLY Keeps left-side rows even when the applied expression returns no rows, filling unmatched columns with NULL (equivalent to a left join).
Syntax
Examples

Window Functions

Window functions are evaluated in the DV Engine and are not pushed down to individual data sources.

LEAD

Returns the value of expr from a row that is offset rows ahead of the current row in the window. Returns default when no such row exists. Syntax
Parameters
  • expr The expression to evaluate in the target row.
  • offset The number of rows ahead to look. The default value is 1.
  • default The value to return when no row exists at the specified offset. The default value is NULL.
Examples

LAG

Returns the value of expr from a row that is offset rows before the current row in the window. Returns default when no such row exists. Syntax
Parameters
  • expr The expression to evaluate in the target row.
  • offset The number of rows behind to look. The default value is 1.
  • default The value to return when no row exists at the specified offset. The default value is NULL.
Examples

FIRST_VALUE

Returns the first value in the current window frame. Syntax
Parameters
  • expr The expression to evaluate.
Examples

LAST_VALUE

Returns the last value in the current window frame. Syntax
Parameters
  • expr The expression to evaluate.
Examples

Aggregate Functions

STDDEV_POP / STDDEV_SAMP

Returns the population or sample standard deviation of a numeric column. Syntax
Parameters
  • expr The numeric column or expression to evaluate.
Examples

VAR_POP / VAR_SAMP

Returns the population or sample variance of a numeric column. Syntax
Parameters
  • expr The numeric column or expression to evaluate.
Examples

STRING_AGG

Concatenates the values in a group into a single string, separated by the specified delimiter. Syntax
Parameters
  • expr The column or expression to concatenate.
  • delimiter The separator string to place between concatenated values.
When DISTINCT or ORDER BY is used inside STRING_AGG, evaluation occurs in the DV Engine and is not pushed down to the source.
Examples

JSONARRAY_AGG

Collects the values in a group into a JSON array. Returns a JSON-typed value. Syntax
Parameters
  • expr The column or expression to collect.
Examples

String Functions

REGEXP_REPLACE

Replaces substrings that match a regular expression pattern. Syntax
Parameters
  • str The input string.
  • pattern The regular expression to match.
  • replacement The string to substitute for each match.
  • flags Optional modifier flags: g (replace all matches), m (multiline), i (case-insensitive).
Examples

REGEXP_INSTR

Returns the 1-based start position of the first match of a regular expression in a string. Returns 0 if there is no match. Syntax
Parameters
  • str The input string.
  • pattern The regular expression to match.
Examples

REGEXP_SUBSTR

Returns the substring matched by a regular expression. Returns NULL if there is no match. Syntax
Parameters
  • str The input string.
  • pattern The regular expression to match.
Examples

SPLIT_PART

Returns the Nth field after splitting a string on a delimiter. Fields are 1-based. Syntax
Parameters
  • str The input string.
  • delimiter The delimiter string.
  • n The 1-based index of the field to return.
Examples

BASE64_ENCODE / BASE64_DECODE

Encodes binary data as a Base64 string, or decodes a Base64 string back to binary. Syntax
Parameters
  • bytes The binary data to encode.
  • str The Base64-encoded string to decode.
Examples

TEXT_ENCODE / TEXT_DECODE

Converts between a string and bytes using a named character set. Syntax
Parameters
  • str The string to encode.
  • bytes The byte sequence to decode.
  • charset The character set name, such as UTF-8 or ISO-8859-1.
Examples

similarity

Returns a fuzzy string similarity score between 0.0 and 1.0. Syntax
Parameters
  • v1 The first string.
  • v2 The second string to compare with v1.
  • algorithm Optional. The similarity algorithm to use. The default value is jaro-winkler. Alternatives include levenshtein.
Examples

Security and Crypto Functions

SHA1 / SHA2_256 / SHA2_512

Computes a SHA hash of the input text and returns the result as a binary value. Use these functions as direct alternatives to HASHBYTES when you want to specify a fixed algorithm. Syntax
Parameters
  • text The string to hash.
Examples

AES_ENCRYPT / AES_DECRYPT

Encrypts or decrypts a string using AES-256 symmetric encryption. Syntax
Parameters
  • text The plaintext string to encrypt.
  • bytes The encrypted byte sequence to decrypt.
  • key The AES-256 encryption key.
Examples

JSON Functions

JSONPATHVALUE

Extracts a scalar value from a JSON document using a JSONPath expression. This function is an alias for JSON_EXTRACT and is pushed down to CData drivers. Syntax
Parameters
  • json The JSON document to query.
  • path The JSONPath expression identifying the scalar value to extract.
  • nullLeaf Optional Boolean. When true, a missing leaf node returns NULL instead of raising an error.
Examples

JSONQUERY

Extracts a JSON fragment (an object or array) at the specified JSONPath. Returns a JSON-typed value, not a scalar. Syntax
Parameters
  • json The JSON document to query.
  • path The JSONPath expression identifying the array or object to extract.
  • nullLeaf Optional Boolean. When true, a missing leaf node returns NULL instead of raising an error.
Examples

JSONPARSE

Parses a string or CLOB value as JSON. Syntax
Parameters
  • clob The string or CLOB to parse.
  • wellformed Boolean. When true, the function skips JSON validation.
Examples

JSONOBJECT

Constructs a JSON object from one or more name/value pairs. Syntax
Parameters
  • expr The value expression for a key.
  • name The key name for the value.
Examples

JSONARRAY

Constructs a JSON array from a list of values. Syntax
Parameters
  • expr One or more values to include in the array.
Examples

JSONTOXML

Converts a JSON value to an XML document. Syntax
Parameters
  • rootName The name to use as the root XML element.
  • json The JSON value to convert.
Examples

JSONTOARRAY

Extracts values from a JSON document using multiple JSONPath expressions and returns them as an array. Each colpath extracts one value from each element matched by the base path. Syntax
Parameters
  • json The JSON document to query.
  • path The base JSONPath for array iteration.
  • nullLeaf Boolean. When true, missing leaf nodes return NULL instead of raising an error.
  • colpaths One or more JSONPath expressions, each extracting a value from the current array element.
Examples

JSONPath Slice Syntax

The DV Engine extends standard JSONPath with array slice notation: Examples

Array Functions

ARRAY_GET

Returns the element at a 1-based index from an array. Syntax
Parameters
  • arr The array to access.
  • idx The 1-based index of the element to return.
Examples

ARRAY_LENGTH

Returns the number of elements in an array. Syntax
Parameters
  • arr The array to measure.
Examples

ARRAY_ADD

Returns a new array with a value appended to the end. Syntax
Parameters
  • arr The source array.
  • value The value to append.
Examples

ARRAY_IN

Returns true if a value is an element of the array. Syntax
Parameters
  • haystack The array to search.
  • needle The value to look for.
Examples

ARRAY_LIKE

Returns true if any element in the array matches a LIKE pattern. Syntax
Parameters
  • haystack The array to search.
  • pattern The LIKE pattern to match against each element.
Examples

ARRAY_LIKE_REGEX

Returns true if any element in the array matches a regular expression pattern. Syntax
Parameters
  • haystack The array to search.
  • pattern The regular expression to match against each element.
Examples

ASARRAY / ASLIST

Constructs an array or list from individual values. ASLIST-Returns arguments as a list: returns an Object (java.util.List).
ASARRAY-Returns arguments as an array: returns a SQL array.
Use ASARRAY when a SQL array type is needed. Use ASLIST when a generic list is expected; for example, as input to other functions that accept a list.
Syntax
Parameters
  • v1, v2, … The values to include in the array or list.
Examples

Numeric Functions

BITAND / BITOR / BITXOR

Performs a bitwise AND, OR, or XOR operation on two integers. Syntax
Parameters
  • x The first integer.
  • y The second integer.
Examples

BITNOT

Performs a bitwise NOT operation on an integer. Syntax
Parameters
  • x The integer to negate bitwise.
Examples

Date and Time Functions

DATE_FORMAT

Formats a date or timestamp as a string using a MySQL-style format pattern. Syntax
Parameters
  • date The date or timestamp value to format.
  • format The format pattern string (for example, '%Y-%m-%d' or '%Y-%m-%d %H:%i:%s').
Examples

ISOWEEK / ISOYEAR

Returns the ISO 8601 week number or ISO year for a given date. Week 1 is the week that contains the first Thursday of the year. Syntax
Parameters
  • date The date value to evaluate.
Examples

Date-Range Functions

The DV Engine provides convenience functions that return date-range boundary values. Use these in WHERE clauses with BETWEEN or comparison operators to filter by relative time periods.

L_LAST_MONTH / L_THIS_MONTH / L_NEXT_MONTH

Returns the start boundary of the previous, current, or next calendar month.

L_LAST_N_MONTHS(n) / L_NEXT_N_MONTHS(n)

Returns the start boundary of a rolling window of N calendar months backward or forward from today.

L_LAST_QUARTER / L_THIS_QUARTER / L_NEXT_QUARTER

Returns the start boundary of the previous, current, or next calendar quarter.

L_LAST_N_QUARTERS(n) / L_NEXT_N_QUARTERS(n)

Returns the start boundary of a rolling window of N quarters backward or forward from today.

L_LAST_YEAR / L_THIS_YEAR / L_NEXT_YEAR

Returns the start boundary of the previous, current, or next calendar year.

L_LAST_N_YEARS(n) / L_NEXT_N_YEARS(n)

Returns the start boundary of a rolling window of N years backward or forward from today.

L_LAST_90_DAYS / L_NEXT_90_DAYS

Returns the boundary date for a rolling 90-day window backward or forward from today.

Miscellaneous Functions

UUID

Generates a new random UUID string. Syntax
Examples

Optimizer Hints

Optimizer hints are embedded in SQL comments and instruct the DV Engine on how to plan query execution. They do not change query results.

MAKEDEP

Forces a dependent join: the engine evaluates this table first and uses its key values as a WHERE key IN (...) filter when querying the other source. This reduces the number of rows fetched from large sources. Syntax
Example

MAKENOTDEP

Prevents the optimizer from using a dependent join for this table. Syntax
Examples

MAKEIND

Forces a table to be the independent (driving) side of a dependent join. The engine evaluates this table first and uses its key values to filter the other side. Syntax
Examples In the following example, SmallTable drives the join so LargeTable gets filtered by an IN list.

Source Hint

Passes a hint string verbatim to the source connector’s SQL translator. Syntax
Examples
